Lucent Portmaster 4 series
Pricing "TRUE CARRIER CLASS SERVICE WITH REDUNDANCY" (Last update: December 12, 2003) Click to buy now
|
If you need a part or accessory you don't
see on this list, please call or
email us.
Portmaster 3 pricing || Portmaster 2 Pricing || Routers
PM4 modem Quad T1 bundle |
$995 with 196 modems. See SPECIALS |
CHEAPEST PRICE
EVER. *** CARRIER CLASS *** Equivalent to 2 Pm3's PLUS 4 T1 routers all in one chassis. but expandable to over 800 modems in a single chassis by using the PM4-4T1-98M card. Includes The PM4-Base (10 slot redundant hot-swappable chassis), 1 PM-4T-98M modem card, 1 PM-4T-M quad t1 card, 1 hot swappable A/C power supply, built-in dual DC power supplies and a System Manager Module w/2 10/100 Full Duplex Ethernet Ports, 1 MII fiber port. NEBS level 3 compliant. Free PMVISION monitoring and configuration software. 90 day warranty. |
in stock Buy Now |
PM4
384 bundle |
$1495 |
An access
server, a router, and a switch all in one chassis!" Equivalent to 8 Pm3's PLUS 4 T1 routers all in one chassis. but expandable to over 800 modems in a single chassis by using the PM4-4T1-98M card. Includes The PM4-Base (10 slot redundant hot-swappable chassis), 4 PM-4T-98M modem cards, 1 PM-4T-M quad t1 card, 1 A/C power supply, DC power supply and a System Manager Module w/2 10/100 Full Duplex Ethernet Ports, 1 MII fiber port. NEBS level 3 compliant. Free PMVISION monitoring and configuration software. 90 day warranty.
|
in stock Buy Now |
PM4 T3 bundle
|
$1995, see SPECIALS |
"The power and
reliability of a $50,000 server for under $4000" Equivalent to 14 Pm3's PLUS 4 T1 routers all in one chassis. A full T3's worth of modems (672) in a single chassis by using PM4-4T1-98M cards and a T3-Mux card so you can plus the T3 directly in. Includes a PM4-Base (10 slot redundant hot-swappable chassis), 7 PM-4T-98M modem cards, 1 PM-4T-M quad t1 card, 2 A/C power supplies, 2 DC power supplies and 2 System Manager Modules w/2 10/100 Full Duplex Ethernet Ports, 1 MII fiber port. NEBS level 3 compliant. Free PMVISION monitoring and configuration software. 90 day warranty. This is a carrier-class system used by the big Internet Providers. |
in stock Buy Now |

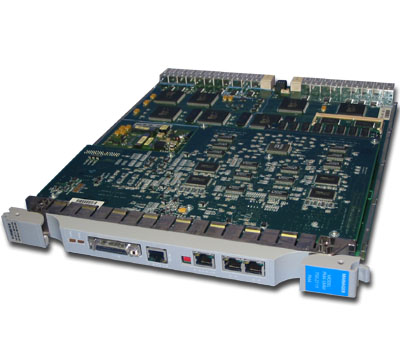

PM4-SMM |
$295 | System Manager Module: Each single slot SMM provides one 10/100Mbps high-speed routing interface and one 10Mbps Ethernet management interface. Additionally, there is one Media Independent Interface (MII) providing a fiber connection for 100Mbps Ethernet access. Up to two SMM can be installed in a single PortMaster 4 base chassis. 90 day warranty. | in stock Buy Now |
PM4-4T1-98M |
$249 (refurb) |
Quad T1/PRI 98-Modem Module: Each single slot module provides 98 V.90 modems (includes two hot spare modem DSPs) or 96 ISDN connections, four T1/CT1/FT1/PRI lines. Each module supports hardware-based Stac compression and provides an additional expansion connector for future option card upgrades. Up to nine Quad T1 modules can be installed in a single PortMaster 4 base chassis. | in stock Buy Now |
PM4-3E1-98M |
$249 (refurb) |
Tri E1/PRI 98-Modem Module: Each single slot module provides 98 V.90 modems (includes eight hot spares modem DSPs) or 90 ISDN connections, three E1/CE1/FE1/PRI lines. Each module supports hardware-based Stac compression and provides additional expansion connector for future option card upgrades. Up to nine Tri E1 modules can be installed in a single PortMaster 4 base chassis. | in stock Buy Now |
PM4-4T1-0M | $199 (refurb) |
Quad T1/PRI ISDN Module: Each single slot module provides 96 ISDN dial-up connections, four T1/FT1 lines. Each module supports hardware based Stac compression and supports Frame Relay and dedicated, leased line routing capability. Up to nine modules can be installed in each PortMaster 4 base chassis. | in stock Buy Now |
PM4-3E10M | $249 (refurb) |
Tri E1/PRI ISDN Module: Each single slot module provides 90 ISDN dial-up connections, three E1/FE1 lines. Each module supports hardware based Stac compression and supports Frame Relay and dedicated, leased line routing capability. Up to nine modules can be installed in each PortMaster 4 base chassis. | in stock Buy Now |
PM4-ACPU | $89 | AC Power Unit: Each hot-swappable power supply operates from 100-240 VAC 50/60 Hz. Up to three AC power units can be installed in a single PortMaster 4 base chassis for load sharing and redundant operation. Requires approximately 1 power unit per 4 slot cards.1 year warranty. | in stock Buy Now |
PM 4 Extended Warranty |
$249 for Basic $495 for extended 24/7 |
DON'T LET THIS HAPPEN TO YOU! Adds 24/7 support w/overnite replacement to your PM4 series access server. | Warranty |
