Lucent Portmaster 2 series Pricing
(Last update: July 1st, 2006)

Click to buy now

FAQ || INFORMATION || SUPPORT || DOWNLOADS || CONTACT US

This is Remanufactured Equipment: (click on the item name for detailed specifications)  Lucent stopped building new portmasters in 2001. Our units are remanufactored to factory specifications, upgraded and tested, running latest ComOs, and carry a 90 day warranty.

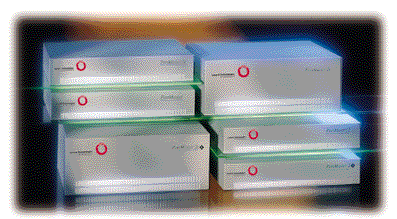

PortMaster 2

If you need a part or accessory  you don't see on this list, please call or email us.

Portmaster 3 pricing || Portmaster 4 Pricing || Routers
Portmaster 2 series: Cabling Specifications || Physical Specifications

PM-25 (popular)
PortMaster 25
  Lucent's best selling and most recently manufactured async remote access product. 25 async serial  ports (1 DB-25M and 3 DB-68HDM ports). Low profile. Only 1/2 the height of the PM2e. Rack mountable (includes 19" rackmount kit). Upgraded to 4 megs ram. Online manuals and software. 90 day warranty. Highly configurable. Each serial port can be TCP port-mapped. Very popular for monitoring other hardware. Requires DC-HDM or  DC-MRJ45-c cables. Free PMVISION monitoring and configuration software. High Density Port pin-out
[19 lbs shipped w/cables]
in stock
buy now
PM-25 Bundle
PortMaster 25
  Same as above but includes 3 new DC-MRJ45-c 3 foot octopus fanout cables (a $100+ Value). 6, 10 and 15 foot cables available too. You can optionally order RJ45-DB9F or RJ45-DB25M modular adapters.
[19 lbs shipped w/cables]
in stock
buy now
PM-2e
PortMaster 30


Expandable async remote access server. Up to 30 async ports OR isdn option cards available, 1 parallel port, power cord. Free upgrades for life. Free PMVISION monitoring and configuration software. Upgraded to 4 megs ram. 90 day warranty. Rack mountable with optional pm2-rack (see below). Use DB-25 m/m cables to connect to modems
[22 lbs shipped without rack or cables]
in stock
buy now
DC-8DB   8 headed (DB-25M) octopus fan-out cable for PM 25 (needed for stand-alone modems or standard serial ports). Use up to 3 per pm-25. Eliminates cable mess. Makes for quick disconnect.
[1.6 lbs each] Cable pin-outs (Excel Spreadsheet)
6 in stock. Being replaced with DC-MRJ45-c with DB-25 or DB-9 adapters.
DC-HDM   3-foot (90cm) long cable that splits into two 50-pin high-density connectors is required for use with a U.S. Robotics High Density port found on the Quad Modem cards. Please check your modem rack's connection specifications to see if you can use this cable.  Cable pin-out specification for the HD connector
[1 lb each]
in stock
buy now
DC-DB25mm
  6 foot long male to male db 25 data cable. Use to connect modems to the PM2e.
[1/2 lb each]
Out of stock ,
See adapters
DC-MRJ45
  8 headed (RJ-45) octopus fan-out cable for PM 25 (use with USR MP and Microcom ISport racks) or connect to RJ45 modular adapters   3 foot. Can be custom ordered to any specification (prices vary).
[1 lb each] Cable pin-outs (Excel Spreadsheet)
Obsoleted Replaced with DC-MRJ45-c.
DC-MRJ45-c (popular)
  Can ALSO be used with Cisco 2509 and 2512 routers

8 headed (RJ-45) octopus fan-out cable for PM 25. Use with RJ45 modular adapters  Available in 3, 6, 10 and 15 foot lengths. Can be custom ordered to any specification (prices vary). Note: this cable has a slightly different pinout than the DC-MRJ45.
[1 lb each] Cable pin-outs (Excel Spreadsheet)

All sizes in stock
Use with DB-25 or DB-9 adapters
buy now
RJ45-RJ45
  RJ-45 to RJ-45 inline coupler. Use with the  DC-MRJ45 octopus fan-out cable to extend your serial connecting with a standard ethernet or flat satin 8 conductor modular cable. Or can be used to extend Ethernet connections as well.
[0.1 lb each]
in stock
buy now

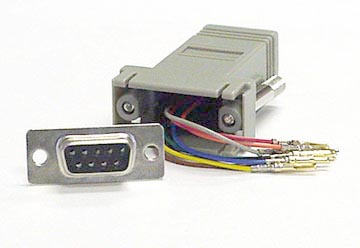

RJ45-DB9F
  RJ-45 to DB9F modular adapters for the DC-MRJ45 PM 25 octopus fan-out cable. Use to connect to Standard DB9M serial ports on PC's or router console ports
[0.1 lb each] Cable pin-outs (Excel Spreadsheet)
in stock
buy now

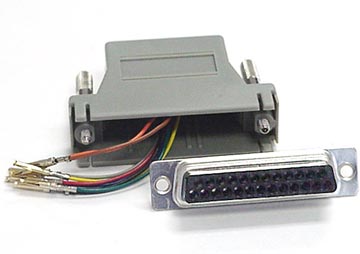

RJ45-DB25M


  RJ-45 to DB25M modular adapters for the DC-MRJ45 PM 25 octopus fan-out cable. Use to connect to 25 pin async serial ports on PC's or router console ports
[0.1 lb each] Cable pin-outs (Excel Spreadsheet)
in stock
buy now
PM-2
PortMaster 2e
  Low profile async remote access server 10 async serial ports, 1 parallel port, power cord, 90 day warranty.
[19 lbs shipped]
in stock
buy now
Pm-2eR
PortMaster 30
  Same as the PM-2e except the parallel port has been replaced with a v.35 Sync serial port, handes up to 2Mbit, T1/E1 speed. "Pop-in-a-box." Rack mountable with optional pm2-rack kit. Free PMVISION monitoring and configuration software.
[22 lbs shipped]
in stock
buy now
PM-2ei-u   Like the PM2e except the serial ports have been replaced with 5 ISDN-U BRI ports (10 64k digital "B" channels). Some or All B channels can be bonded via MPPP to provide up to 2Mbit/sec thuput using ISDN-U BRI lines. 1 serial port. Upgraded to 4 megs ram. Rackmount kit included. (not compatible with Euro ST ISDN)
[22 lbs shipped]
in stock
buy now
PM2-RACK   19" Rack mount kit for the pm2e series. 6 lb, shelf style, includes mounting hardware.
[7 lbs shipped]
in stock
buy now
PM25-RACK   Rackmount kit for PM25/PM3 series access servers. Includes all mounting hardware required to mount a PM25 or PM3 into a 19" rack system.
[1 lbs shipped]
in stock
buy now
PM2-RAM-4
PM2-RAM-16
  4 and 16 Meg upgrade kit  for PM2, PM25, PM2e, and PM2eR series access servers. At least 4 megs is required for Comos Upgrades 3.9 and higher and 16 megs is needed for routing protocols such as BGP.
[1 lbs shipped]
in stock
buy now
MOD-2e-10A   10 port async serial expansion card for the PM2e or PM2ei series. Labeled S10-S19. Includes 3 connector internal 60 pin ribbon cable.
[2 lbs shipped]
in stock
buy now
MOD-2e-10B   Same as above but labeled S20-S29 and does not include the ribbon cable, which is not needed if expanding a PM-2e-20.
[2 lbs shipped]
in stock
buy now
CBL-PM2-60   60 Pin internal ribbon cable for pm2e. Allows connection of expansion cards.
[1 lb shipped]
in stock
buy now
MOD-10iu-bri   5 port BRI expansion card for the PM2e or PM2ei series. Adds 10 digital 64k B channels to your PM2. Please request internal data cable if needed. (not compatible with Euro ST ISDN)
[2 lbs shipped]
in stock
buy now
PM 2 Extended Warranty   DON'T LET THIS HAPPEN TO YOU! Adds warranty and technical support w/advanced replacement to your PM2 series access server. Recommended
buy now
